How to Design an Irrigation System for a Villa Garden in UAE

A UAE villa garden without a proper irrigation system is a constant battle — hand watering in 45°C heat, patchy brown grass, and water bills that make no sense. The good news: a well irrigation system design for villa does the opposite. It keeps your garden healthy year-round, uses less water than manual methods, and runs automatically whether you’re home or travelling. This guide walks you through the complete design process — from mapping your garden to choosing the right pipes, zones, and equipment for UAE conditions.

---

---

Why Proper Design Matters in the UAE

Irrigation systems in the UAE face conditions unlike almost anywhere else in the world:

• Extreme heat: Summer temperatures of 42–48°C cause rapid evaporation — an unshielded sprinkler running at midday loses 30–50% of its water before it hits the ground.
• Hard water: UAE mains water is high in dissolved minerals. Poorly designed systems accumulate limescale in drip emitters and nozzles within months.
• Varied plant types in one garden: UAE villas typically have lawn, desert-adapted plants, tropical palms, hedges, and flowering borders — each with completely different watering needs.
• Water costs: DEWA and other UAE utilities charge progressively for high water consumption. A wasteful irrigation system hits your utility bill hard.
• Soil: Many UAE villa gardens sit on sandy, low-retention soil that drains rapidly — water moves through it fast and needs to be applied in shorter, more frequent cycles to actually benefit roots.

Getting the design right from the start prevents all of these problems. A poorly designed system wastes water, damages plants, creates maintenance headaches, and costs more to run every month.

---

Step 1 — Assess Your Garden and Water Supply

Measure Your Garden Area

Before anything else, measure your total garden area and break it into distinct sections: lawn area (in square metres), planting beds, trees, shrubs, and hardscape (areas with no planting). This is your baseline for calculating water demand and how many sprinkler heads or drip emitters you need.

Check Your Water Pressure and Flow Rate

This step is critical and most people skip it. Your irrigation system only works properly if it matches your available water pressure and flow rate from the mains supply.

• Static pressure: Measure with a pressure gauge at your main outdoor tap. UAE villa mains pressure typically runs 2.5–4.5 bar (36–65 psi).
• Flow rate: Fill a 10-litre bucket and time how long it takes. Calculate litres per minute. This tells you how many zones you can run simultaneously.

If your pressure is below 2 bar, you may need a booster pump for sprinkler zones. Drip irrigation works at lower pressures and may be your better option.

Identify Your Water Source

Most UAE villa gardens connect to the DEWA (or local utility) mains supply. Some communities also have access to treated grey water or TSE (Treated Sewage Effluent) for irrigation — which is significantly cheaper and encouraged by Dubai Municipality. Check with your community management if TSE irrigation lines are available.

---

Step 2 — Plan Your Irrigation Zones

Zoning is the most important part of irrigation design. A zone is a group of plants with the same water requirements, served by one valve and one section of pipe. Never mix different plant types in the same zone — your lawn needs completely different watering schedules to your desert-adapted shrubs.

Typical UAE Villa Garden Zones

Zone Type	Irrigation Method	Summer Frequency	Winter Frequency
Lawn / Grass	Pop-up rotary sprinklers	Daily (early morning)	Every 2–3 days
Shrubs & Hedges	Drip emitters or micro-sprayers	Daily	Every 2–4 days
Palm Trees	Bubbler emitters at root zone	Every 2–3 days	Weekly
Desert / Drought-Tolerant Plants	Drip emitters	Every 3–5 days	Weekly or less
Potted Plants / Containers	Drip emitters or micro-jets	1–2 times daily	Daily
Flower Beds	Drip or soaker line	Daily	Every 2–3 days

Each zone above should be served by its own solenoid valve, controlled independently by your irrigation timer or smart controller. This is non-negotiable for water efficiency in UAE conditions.

---

Step 3 — Choose Your Irrigation System Type

Drip Irrigation — Best for Most UAE Gardens

Drip irrigation delivers water slowly and directly to the root zone of each plant through small emitters. It’s the most water-efficient method available — losing almost nothing to evaporation — which makes it the ideal choice for UAE’s extreme summer heat.

Best for: Shrubs, hedges, trees, flower beds, potted plants, and any area where water precision matters. Also ideal for sloped areas where sprinkler runoff is an issue.

For a deeper look at how drip systems work, see our guide on how drip irrigation works.

Pop-Up Sprinklers — Best for Lawns

Pop-up rotary or fixed sprinklers are the standard for UAE villa lawns. They rise when the zone activates, spray in a set radius, then retract below ground when done. Key considerations for UAE:

• Always schedule lawn sprinklers for 4:00–6:00 AM — before sunrise, when evaporation is lowest and wind is calmer
• Use matched-precipitation-rate rotors across all heads in a zone to ensure uniform coverage
• Space heads so their spray patterns overlap by at least 50% (“head-to-head coverage”)

Micro-Sprayers — For Dense Planting Beds

Micro-sprayers are small fixed sprinkler heads on short stakes, delivering a fine spray over a limited radius (30–150 cm). They work well for dense groundcover, flower beds, and established shrub borders where drip emitters would need to be placed at very high density.

For a comparison of irrigation systems available in the UAE market, see our guide on different types of irrigation systems.

---

Step 4 — Select the Right Pipes and Fittings

Your pipe selection determines the durability and reliability of the whole system. UAE conditions — UV exposure, ground heat, and hard water — make pipe selection more critical than in temperate climates.

Mainline Pipe (Supply Line)

The mainline runs from your water source to the valve manifold and from valves to each zone. For UAE villa gardens, the standard is:

• uPVC pipe (Class C or PN10): Rigid, UV-resistant, and handles the mains water pressure well. Standard sizes are 25mm or 32mm for villa mainlines. See our uPVC pipes and fittings range.
• HDPE pipe: More flexible than uPVC, excellent chemical resistance, and handles ground movement well. A good alternative for buried mainlines, especially in sandy UAE soil. See our HDPE pipe options.

Lateral (Distribution) Pipe

The lateral pipe runs from each zone valve to the sprinklers or drip emitters:

• For sprinkler zones: uPVC 20mm or 25mm, buried 30–40cm deep to protect from surface heat
• For drip zones: Polyethylene (PE) drip mainline (16mm or 20mm) with 12mm or 16mm sub-laterals to each emitter

Avoid These Pipe Mistakes in UAE

• Never use standard PVC pipe for sections exposed to direct sunlight — it degrades rapidly in UAE UV. Always use uPVC rated for outdoor UV exposure.
• Avoid running black PE drip pipe above ground in summer — surface temperatures can exceed 70°C on a UAE summer day, and unshielded black pipe softens and deforms. Bury it or cover with mulch.
• Use proper compression fittings rated for your system pressure — cheap barbed push-fit fittings are the most common source of irrigation leaks in UAE villa gardens.

Need help choosing between pipe types? Read our detailed comparison of pipe materials for irrigation systems.

---

Step 5 — Choose Your Controller and Valves

Irrigation Controller (Timer)

The controller is the brain of your system. It schedules when each zone runs, for how long, and how many times per day. For a UAE villa garden, you need at minimum:

• Minimum 6–8 zones (most medium UAE villa gardens need 8–12)
• Multiple start times per day — essential for UAE summers when twice-daily watering is needed
• Rain sensor input — skips scheduled watering on rainy days (rare in UAE, but worth having)

For maximum efficiency and convenience, consider a smart irrigation controller. These connect to your home WiFi and adjust watering schedules automatically based on local weather data, soil moisture sensors, and plant type settings. In UAE conditions, a smart controller can reduce water consumption by 20–40% compared to a fixed timer schedule. Read our complete guide on smart irrigation systems for UAE landscapes.

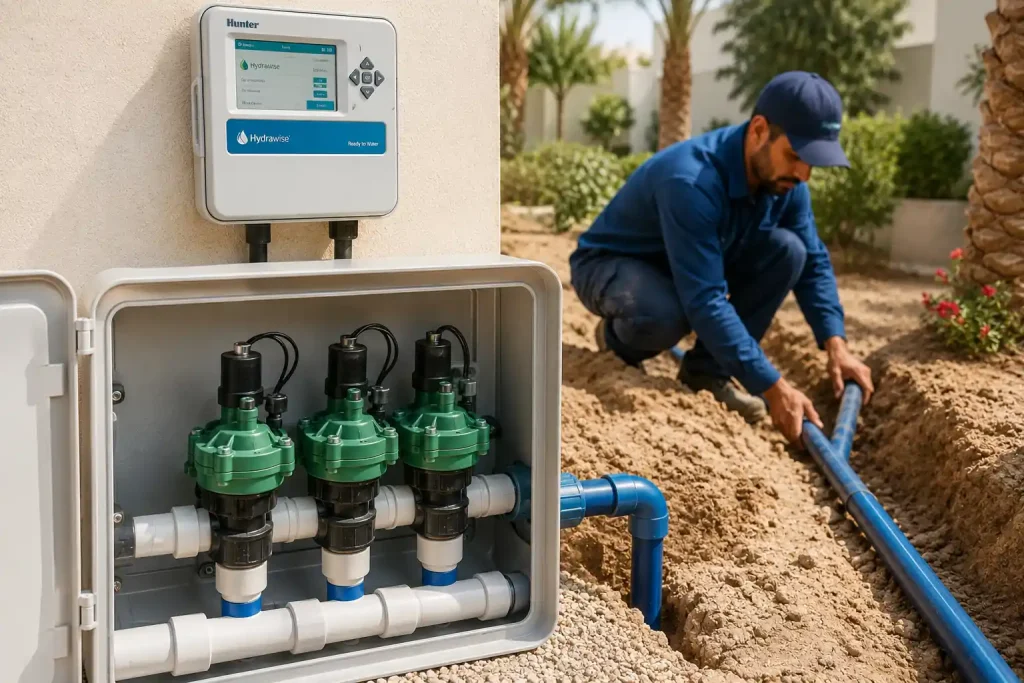

Solenoid Valves

Each zone needs its own solenoid valve — an electrically operated valve that opens and closes when the controller signals. For UAE villa gardens:

• Group valves into a manifold box near the water source — easier to service and locate
• Use quality valves rated for your system pressure (minimum PN10 for UAE mains supply)
• Choose valves with a manual override — so you can run a zone manually during maintenance without needing the controller

---

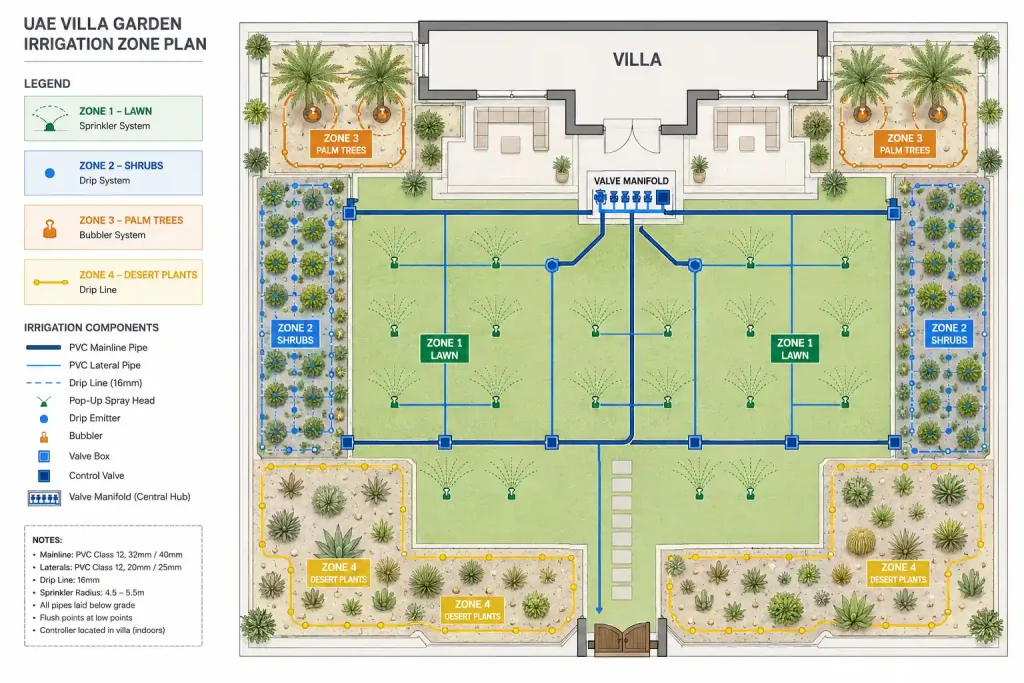

Step 6 — Draw Your Irrigation Layout

Before buying any equipment or digging trenches, draw your complete irrigation plan on paper (or a simple app like AutoCAD LT or even Google Drawings). Your plan should show:

• The mainline route from your water source to the valve manifold
• Each zone’s lateral pipe routes
• Location of every sprinkler head, drip emitter, or micro-sprayer
• Valve manifold location
• Controller mounting location (near power supply)
• Trench depths and pipe sizes for each section

This plan becomes your shopping list for materials and your guide during installation. A poorly planned installation with pipes running across each other, incorrectly spaced sprinkler heads, or undersized pipe diameters causes pressure problems that are difficult and expensive to fix after the pipes are buried.

---

Water-Saving Tips for UAE Gardens

Water conservation is both a cost issue and a regulatory one in the UAE. These practices make a measurable difference:

• Always water before sunrise (4:00–6:00 AM): Evaporation in UAE peaks between 10 AM and 4 PM. Early morning watering keeps almost all applied water in the soil.
• Use mulch around plants: A 5–8cm layer of organic mulch around shrubs and trees can reduce soil evaporation by up to 50% — dramatically reducing how often you need to irrigate.
• Choose UAE-adapted plants: Native and desert-adapted species (bougainvillea, ghaf trees, lemon grass, desert rose) need 60–80% less water than water-hungry tropical species. They’re also more heat and salt tolerant.
• Install a soil moisture sensor: These sensors prevent irrigation from running when soil is already sufficiently wet. In UAE, this is most valuable after rare rainfall or high-humidity periods.
• Use pressure-compensating drip emitters: These deliver a consistent flow regardless of pressure variations — critical in larger UAE villa gardens where pipe runs are long and pressure drops at the far end.
• Upgrade your irrigation system regularly: See our guide on 5 reasons to upgrade your irrigation system.

---

Common Irrigation Design Mistakes in UAE Villas

Mistake 1: Mixing Lawn and Shrub Zones

Why it’s a problem: Lawn and shrubs need completely different watering volumes and schedules. Mixing them means you’re always over-watering one or under-watering the other.
Fix: Always zone by plant type, not by convenience of pipe routing.

Mistake 2: Not Accounting for Pressure Loss

Why it’s a problem: Long pipe runs, multiple fittings, and elevation changes all reduce water pressure. Sprinkler heads at the far end of a zone may receive too little pressure to function properly.
Fix: Calculate pressure loss for every zone during design, and size pipe diameters accordingly. Use pressure-regulating valves where needed.

Mistake 3: Running Sprinklers During the Day

Why it’s a problem: Midday sprinkler operation in UAE summer loses 30–50% to evaporation before the water reaches the soil. Water on leaves during peak sun also causes leaf scorch.
Fix: Programme all zones to run between 4:00 AM and 7:00 AM only.

Mistake 4: Using Cheap or Unrated Fittings

Why it’s a problem: UAE mains supply pressure can spike. Cheap fittings fail under pressure spikes, causing leaks in buried pipes that are difficult to locate and expensive to repair.
Fix: Use fittings rated to at least PN10 (10 bar) for all buried connections. See our guide on pipe fitting types to understand ratings.

Mistake 5: No Filter on the Mainline

Why it’s a problem: UAE water supply carries fine sediment and mineral particles that block drip emitters within weeks.
Fix: Install a 120-mesh or finer filter at the mainline entry point, before the valves. Clean it monthly during heavy use periods.

---

Frequently Asked Questions

How many irrigation zones does a typical UAE villa garden need?

Most medium UAE villa gardens (400–800 sqm) need 8–12 zones. Larger plots with extensive landscaping, pools, and multiple garden sections can need 15–20 zones. The number depends on how many distinct plant types you have and how large each area is. It’s always better to have more zones than fewer — more zones mean more precise control.

What pipe size should I use for my villa garden irrigation mainline?

For most UAE villa gardens, a 25mm or 32mm uPVC or HDPE mainline is sufficient. If you have more than 10 zones or a large garden over 1,000 sqm, use 40mm for the mainline and reduce to 25mm or 20mm for laterals. Pipe sizing depends on your flow rate and the number of zones that will run simultaneously.

How much does it cost to install an irrigation system in a UAE villa garden?

A professionally installed irrigation system for a medium UAE villa garden (including controller, valves, pipes, drip lines, and sprinklers) typically costs AED 8,000–25,000 depending on garden size, number of zones, and equipment quality. Smart controller systems with soil moisture sensors add AED 2,000–6,000 but usually pay back in water savings within 2–3 years.

Is drip irrigation or sprinkler better for UAE conditions?

Drip irrigation is more water-efficient and better suited to UAE heat — it delivers water directly to the root zone with minimal evaporation loss. Sprinklers are necessary for lawn areas where full coverage is needed. Most UAE villa gardens use both: drip for all planting beds and trees, sprinklers for lawn zones only.

Can I use grey water or TSE for garden irrigation in Dubai?

Yes — Dubai Municipality actively encourages use of TSE (Treated Sewage Effluent) for landscape irrigation where it’s available. TSE is significantly cheaper than DEWA mains supply. Check with your community management or Dubai Municipality to see if TSE infrastructure is available in your area. Only use TSE with drip or subsurface irrigation — not overhead sprinklers — to avoid spray contact with people.

---
