Selecting the wrong pipe material for your fire sprinkler system can lead to catastrophic consequences. A system failure during an emergency doesn’t just mean property damage it puts lives at risk and exposes you to legal liability. Imagine discovering during a critical moment that your pipes have corroded, burst under pressure, or failed to deliver water when it matters most. The wrong piping choice leads to premature system failure, costly replacements, code violations, and inadequate fire protection.
This comprehensive guide walks you through the most reliable pipe materials used in modern fire sprinkler installations, helping you make informed decisions that ensure safety, compliance, and long-term performance.

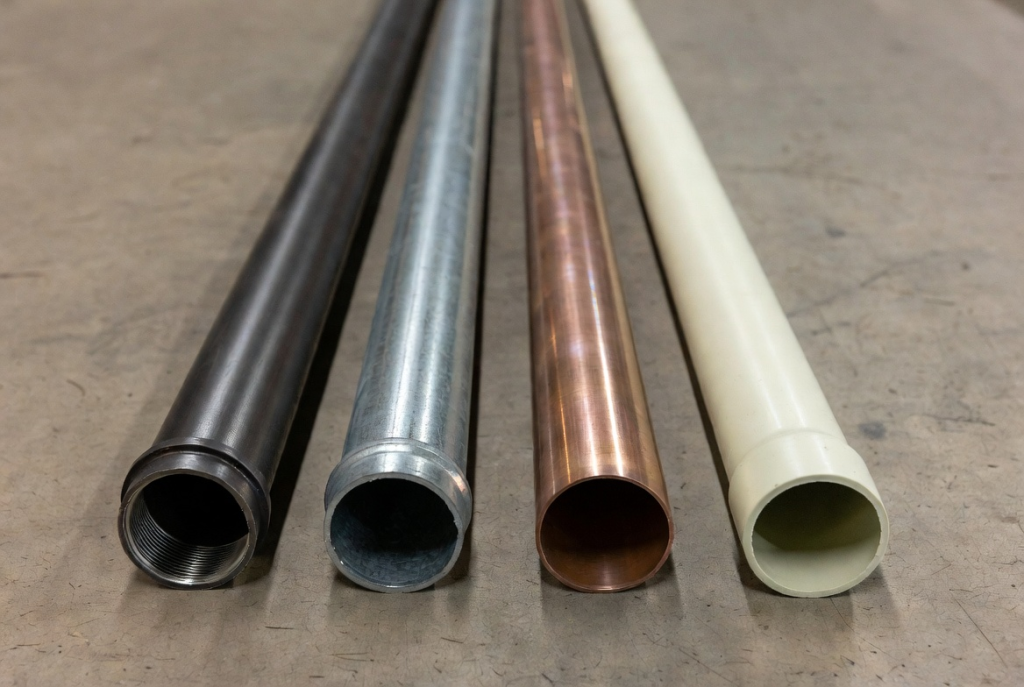

Fire sprinkler systems rely on several types of pipes, each designed for specific applications and environments. The most commonly used pipe materials include:

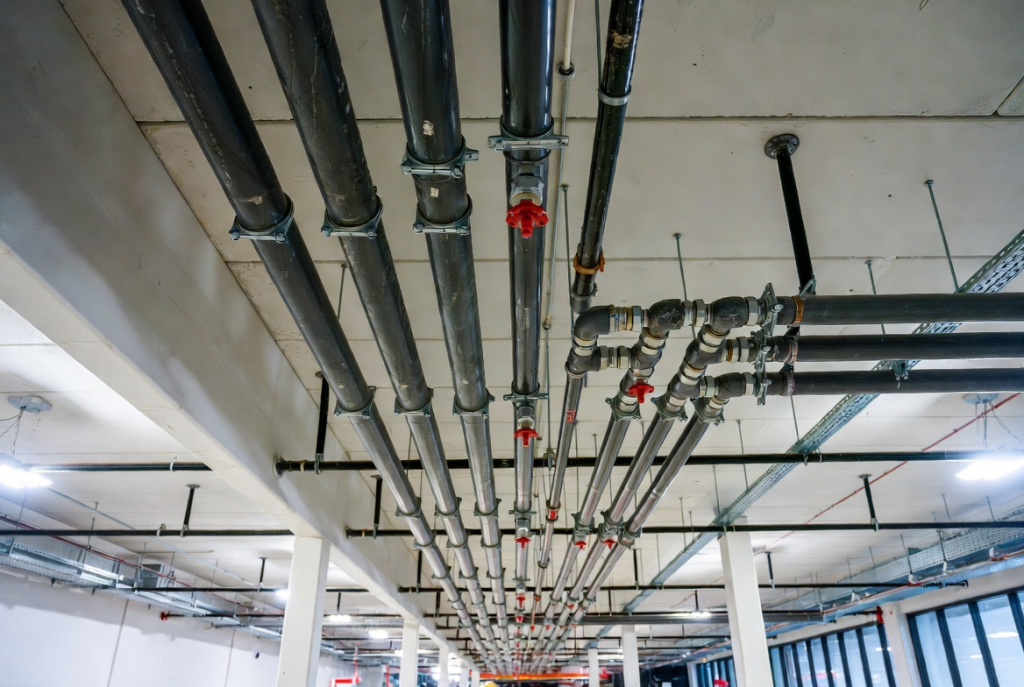

Steel Pipes – Steel pipes, including black steel and galvanized steel, have been the traditional choice for fire sprinkler systems for decades. Black steel pipes are cost-effective and widely available, making them popular for dry pipe systems. Galvanized steel pipes offer enhanced corrosion resistance through their zinc coating, extending their lifespan in wet pipe systems.
Copper Pipes – Copper piping is valued for its excellent corrosion resistance and longevity. While more expensive than steel alternatives, copper pipes are ideal for residential fire sprinkler systems and areas where aesthetics matter. They’re particularly suitable for exposed installations where appearance is a consideration.
CPVC Pipes (Chlorinated Polyvinyl Chloride) – CPVC pipes have gained significant popularity in residential and light commercial applications. These plastic pipes are lightweight, corrosion-resistant, and easier to install than metal alternatives. They’re approved for use in many jurisdictions and offer excellent cost-effectiveness for smaller systems.
Steel Pipe with Special Coatings – Modern fire sprinkler installations increasingly use steel pipes with specialized internal coatings. These coatings prevent corrosion and microbiologically influenced corrosion (MIC), significantly extending pipe life and maintaining system reliability.
Proper installation requires quality piping accessories including fittings, hangers, and connectors to ensure system integrity.
Steel piping remains the predominant choice in fire sprinkler installations for several compelling reasons:
Strength and Durability – Steel pipes can withstand high pressures and mechanical stress, making them ideal for large-scale commercial and industrial applications. Their structural integrity ensures they won’t sag or deform over time, maintaining proper water flow and pressure throughout the system’s lifespan.
Fire Resistance – Unlike plastic alternatives, steel pipes won’t melt or degrade when exposed to fire. This is crucial in fire sprinkler systems, where the piping must remain intact during the very emergency it’s designed to address. Steel’s high melting point provides an additional safety margin.
Code Compliance – Building codes and NFPA (National Fire Protection Association) standards have long recognized steel as an approved material for fire sprinkler systems. This widespread acceptance makes permitting and inspection processes smoother for contractors and building owners.
Proven Track Record – With over a century of successful use in fire protection systems, steel piping has a documented history of reliability. Insurance companies and building inspectors trust steel because of its extensive performance data.
Availability and Standardization – Steel pipes are manufactured to precise standards and are readily available in various sizes and schedules. This standardization ensures compatibility with fittings, hangers, and other system components.
CPVC pipes offer distinct advantages in specific fire sprinkler applications:

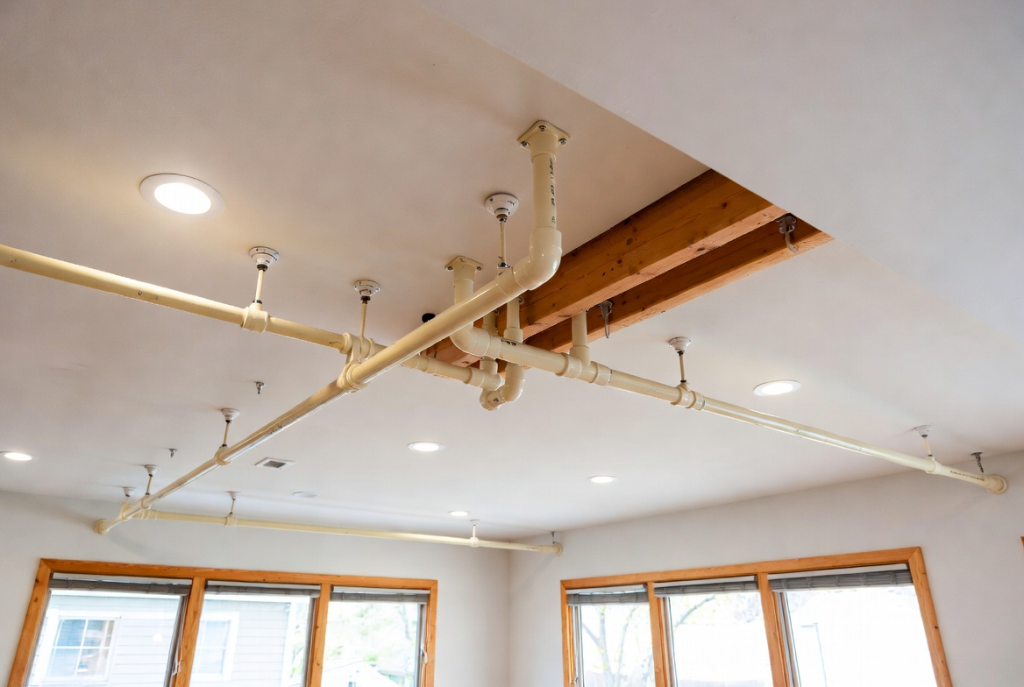

Residential Applications – CPVC is particularly well-suited for residential fire sprinkler systems in homes and low-rise apartment buildings. The lighter weight makes installation easier in wood-frame construction, and the lower cost makes fire protection more accessible to homeowners. CPVC is also widely used in pool and plumbing solutions for similar corrosion-resistance benefits.
Corrosion-Prone Environments – In areas with aggressive water chemistry or coastal locations with salt air, CPVC’s immunity to corrosion provides a significant advantage. Unlike metal pipes, CPVC won’t rust, pit, or develop pinhole leaks from electrochemical reactions.
Retrofit Projects – When adding fire sprinklers to existing buildings, CPVC’s ease of installation can reduce labor costs and minimize disruption. The pipes can be cut and assembled with simple tools, and they don’t require welding or threading equipment.
Freeze-Resistant Properties – While no pipe is completely freeze-proof, CPVC has some flexibility that allows it to expand slightly when water freezes, potentially reducing burst risks compared to rigid metal pipes. However, proper system design and freeze protection remain essential.
Cost-Effective Solutions – For budget-conscious projects where codes permit CPVC use, these pipes can reduce both material and installation costs by up to 30% compared to steel systems, without compromising safety when properly installed.
Copper piping serves specialized niches in fire sprinkler systems:

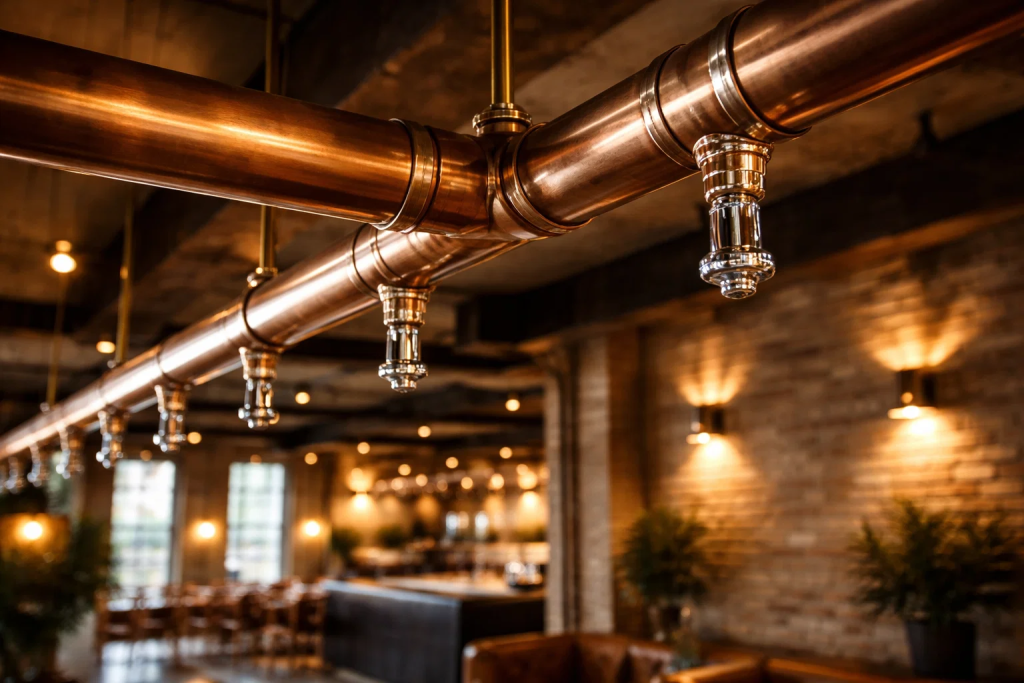

Premium Residential Applications – In luxury homes and high-end residential developments, copper’s attractive appearance makes it the preferred choice for exposed fire sprinkler piping. The natural patina of copper can complement architectural design elements.
Healthcare Facilities – Hospitals and medical facilities often specify copper for fire sprinkler systems because of its antimicrobial properties and long-term reliability in critical infrastructure. The reduced maintenance requirements align with healthcare facilities’ operational needs.
Corrosive Water Conditions – When dealing with particularly aggressive water chemistry that could compromise steel pipes, copper provides excellent resistance to many types of corrosion. This makes it suitable for areas with acidic water or high mineral content.
Longevity Requirements – Copper pipes can last 50 years or more with minimal maintenance, making them cost-effective over the building’s lifetime despite higher initial costs. This long-term reliability is particularly valuable in buildings where pipe replacement would be extremely disruptive. Investing in premium quality pipes and fittings ensures long-term performance and reliability.
Small Diameter Applications – For branch lines and smaller sprinkler laterals, copper’s ease of fabrication and reliability make it an excellent choice. The material is easily bent and fitted, reducing the number of joints needed.

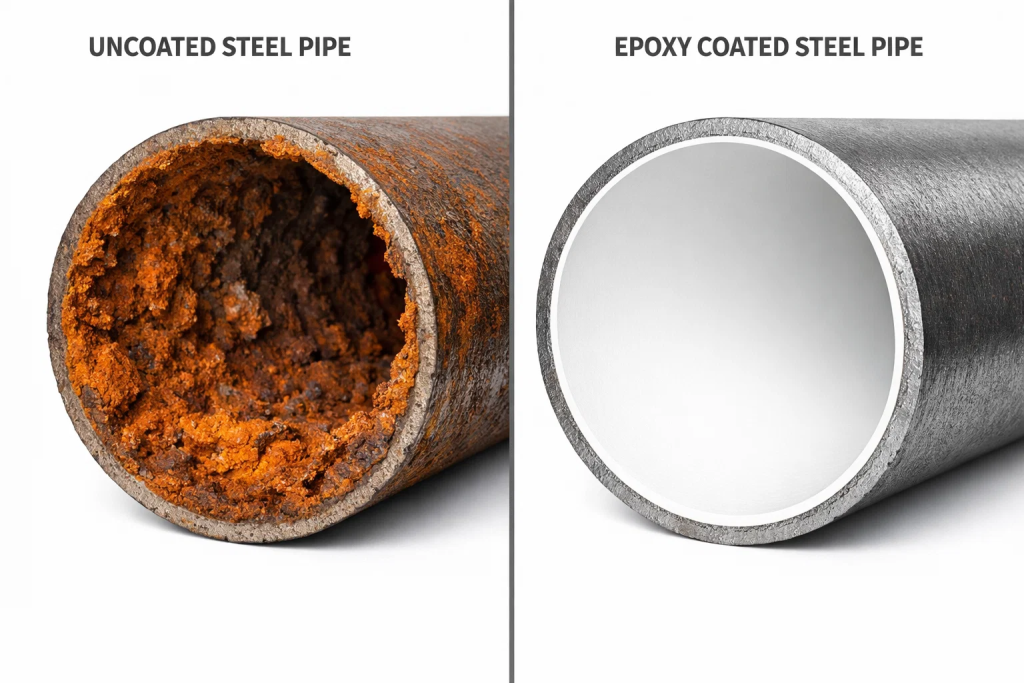

Advanced coating technologies have revolutionized steel pipe performance in fire sprinkler systems:
Corrosion Prevention – Internal coatings create a barrier between the water and the steel surface, preventing the oxidation that leads to rust and pipe degradation. This dramatically extends pipe life, particularly in wet pipe systems where water is constantly present.
Microbiologically Influenced Corrosion (MIC) Resistance – Modern coatings resist biofilm formation that can lead to MIC, a significant cause of premature pipe failure. By preventing bacterial colonies from establishing on pipe surfaces, these coatings maintain system integrity.
Improved Water Flow – The smooth interior surface of coated pipes reduces friction, maintaining better flow rates and pressure throughout the system’s life. This ensures sprinklers operate at design pressures even as the system ages.
Extended Service Life – Coated steel pipes can last 2-3 times longer than uncoated alternatives, reducing long-term maintenance costs and system downtime. The protective coating prevents the formation of tubercles and scale that typically reduce pipe capacity over time.
Hybrid Benefits – Coated steel pipes offer the strength and fire resistance of steel combined with the corrosion resistance approaching that of CPVC or copper. This makes them versatile for various applications and environmental conditions.
Choosing the right pipe material requires considering multiple factors:
Building Type and Occupancy – High-rise commercial buildings typically require steel piping due to pressure requirements and code mandates, while single-family homes may be well-served by CPVC systems. Understanding occupancy classification helps narrow material choices.
Local Building Codes – Always verify that your selected pipe material is approved by local authorities having jurisdiction (AHJ). Some municipalities have specific requirements or restrictions on certain materials based on regional experience or preferences.
Water Quality – Analyze the water supply’s pH, mineral content, and chemical composition. Aggressive water may accelerate corrosion in uncoated steel pipes, making coated options, copper, or CPVC more suitable.
System Type – Dry pipe systems can use different materials than wet pipe systems. Dry systems (filled with pressurized air) may have different corrosion concerns than wet systems (constantly filled with water). Similar considerations apply when selecting pipes for irrigation systems and other water management applications.
Budget Constraints – While initial cost is important, calculate total cost of ownership including installation labor, expected service life, and maintenance requirements. A more expensive material may prove more economical over the building’s lifespan.
Environmental Conditions – Consider temperature extremes, exposure to chemicals, seismic activity, and other environmental factors that might affect pipe performance. Coastal installations, for instance, face different challenges than desert locations.

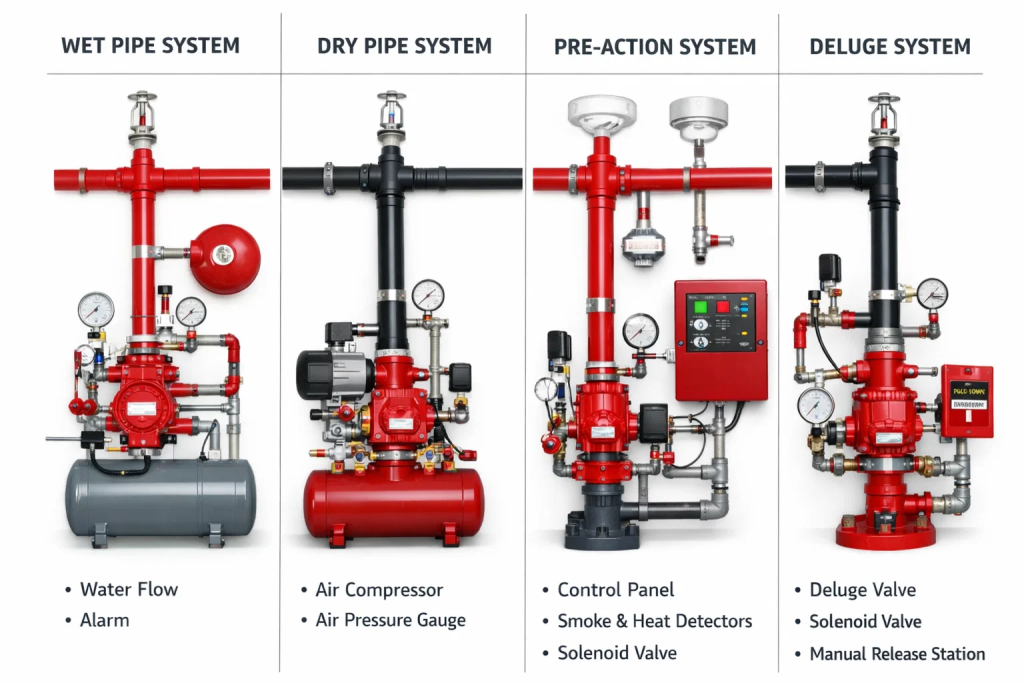

Different fire sprinkler system designs have specific piping requirements:
Wet Pipe Systems – These systems, always filled with water, require materials with excellent corrosion resistance. Coated steel, copper, or CPVC are preferred choices. Regular water testing and treatment can extend pipe life significantly.
Dry Pipe Systems – Filled with pressurized air until activated, dry systems experience different corrosion patterns. Black steel is commonly used, but internal corrosion from condensation can occur. Galvanized or coated pipes offer better longevity.
Pre-Action Systems – These sophisticated systems require the highest reliability. Steel piping is typically specified due to its proven performance in critical applications. The added complexity of pre-action systems justifies premium materials.
Deluge Systems – Similar to dry pipe systems but designed to discharge water from all sprinklers simultaneously, deluge systems need piping that can handle sudden pressure surges. Heavy-wall steel piping is commonly specified.
Antifreeze Systems – Where antifreeze solutions are used in small systems, pipe materials must be compatible with the antifreeze chemical. Some CPVC formulations and coatings may be affected by certain antifreeze solutions.
Proper installation is as important as material selection:
Proper Joining Methods – Use appropriate joining techniques for each material: threaded or grooved connections for steel, soldered joints for copper, and solvent welding for CPVC. Follow manufacturer specifications precisely.
Adequate Support and Hangers – Install hangers at code-required intervals to prevent sagging and maintain proper pitch for drainage. Different materials have different spanning capabilities and require specific hanger spacing.
Flushing and Testing – Thoroughly flush the system before final connection to remove installation debris, cutting oils, and flux. Conduct hydrostatic testing per NFPA 13 requirements to verify system integrity.
Corrosion Inhibitors – In wet pipe systems using steel, consider adding approved corrosion inhibitors to the water. This simple step can dramatically extend pipe life and reduce maintenance needs.
Quality Materials and Fittings – Source pipes and fittings from reputable manufacturers and trusted brands that meet or exceed ASTM and NFPA standards. Certified products ensure compliance and performance.
Professional Installation – Engage licensed contractors with specific fire sprinkler experience. Proper installation is critical for system performance and code compliance. Working with suppliers who provide expert technical support can help ensure proper material selection and installation methods.
Steel pipes are best for commercial buildings due to their strength and fire resistance. CPVC pipes work well for residential installations with lower costs and easier installation. Copper pipes provide premium performance in luxury applications. For most commercial projects, coated steel pipes offer the best balance of durability and long-term value.
No, regular PVC pipe is not approved for fire sprinkler systems. However, CPVC (Chlorinated Polyvinyl Chloride) is specifically designed and approved for fire sprinkler applications. CPVC has higher temperature resistance (up to 200°F) and meets NFPA 13D standards for residential systems. Always verify local code approval before installation.
Fire sprinkler pipe lifespan varies by material:
Steel pipes (uncoated): 20-30 years in wet systems
Coated steel pipes: 50-75 years
Copper pipes: 50+ years
CPVC pipes: 50+ years
Actual lifespan depends on water quality, system type, and maintenance practices. Regular inspections and water treatment can significantly extend pipe life.
Fire sprinkler pipes range from 1 inch to 12 inches in diameter:
Branch lines: 1″ to 2.5″ (feeding individual sprinklers)
Cross mains: 2.5″ to 6″ (distributing water)
Feed mains: 4″ to 12″ (main supply lines)
Pipe sizing is determined by hydraulic calculations based on NFPA standards and building requirements. A licensed fire protection engineer should perform these calculations.
Both have advantages. Copper offers superior corrosion resistance, longer lifespan (50+ years), and aesthetic appeal for exposed installations. Steel provides lower costs, higher strength for large systems, and better availability in larger sizes. Copper is ideal for residential and corrosive environments, while coated steel is more cost-effective for commercial installations.
Schedule 10 has thinner walls, is lighter and cheaper, and is approved for light-hazard occupancies (offices, residential). Schedule 40 has thicker walls, higher pressure ratings, and is required for ordinary and high-hazard occupancies (warehouses, manufacturing). NFPA 13 specifies which schedule is required based on building occupancy classification.
No, NFPA standards do not require fire sprinkler pipes to be painted red. However, many facilities paint them red for easy identification. NFPA 13 only requires that control valves be properly marked and different systems be distinguishable. Always follow local building codes and facility standards for color-coding requirements.
Yes, fire sprinkler pipes can freeze and burst if not properly protected. Wet pipe systems filled with water are most vulnerable. Prevention methods include installing in heated areas (above 40°F), using dry pipe or antifreeze systems in unheated spaces, adding insulation and heat tracing, and ensuring proper drainage. Dry pipe systems using pressurized air are recommended for freezing environments.
No, galvanized pipes are not required but are recommended for wet pipe systems. Galvanized steel offers better corrosion resistance than black steel due to its zinc coating, extending system life by 10-20 years. Black steel is commonly used in dry pipe systems where water isn’t constantly present. Modern alternatives include epoxy-coated or cement-lined steel pipes that provide even better corrosion protection than galvanization.
Selecting the right pipes for fire sprinkler systems is a critical decision that impacts safety, compliance, and long-term costs. While steel piping remains the industry standard for most commercial applications, CPVC offers excellent value for residential systems, and copper provides premium performance in specialized applications. Coated steel pipes represent the evolution of traditional materials, combining steel’s strength with enhanced corrosion resistance.
Understanding your specific application requirements, local codes, water conditions, and budget constraints will guide you to the optimal pipe material choice. Whether you’re installing a new system or upgrading an existing one, partnering with experienced suppliers and installers ensures your fire sprinkler system will perform reliably when it matters most.
